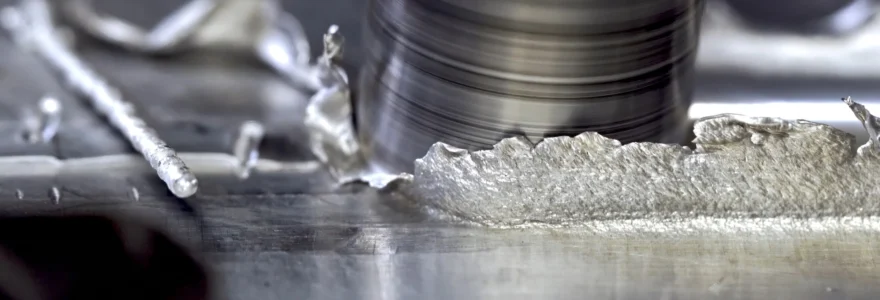

Friction stir welding (FSW) has revolutionized the joining of materials, particularly in industries where high-strength, lightweight alloys are crucial. The interplay between equipment design, heat generation, and tool wear in FSW processes is a complex yet fascinating area of study. As manufacturers push the boundaries of what's possible with FSW, understanding these relationships becomes increasingly important for optimizing welding outcomes and extending tool life.
FSW heat generation mechanisms in equipment design
The heat generation in FSW is primarily a result of friction between the rotating tool and the workpiece, as well as the plastic deformation of the material being welded. The design of the FSW equipment significantly influences how this heat is generated and distributed throughout the welding process. Key factors in equipment design that affect heat generation include the tool geometry, rotational speed, and axial force applied during welding.
One of the most critical components in FSW heat generation is the friction stir welding tool. The tool's shoulder diameter, pin profile, and surface features all play crucial roles in determining the amount and distribution of heat generated during the welding process. For instance, a larger shoulder diameter typically results in more heat generation due to the increased contact area with the workpiece.
Advanced FSW equipment designs now incorporate features that allow for precise control over these heat generation mechanisms. Variable speed motors enable operators to adjust rotational speeds on the fly, while sophisticated force control systems maintain consistent axial pressure throughout the weld. These design elements contribute to more uniform heat generation and improved weld quality.
Optimizing heat generation in FSW is akin to conducting a symphony – each component of the equipment must work in harmony to produce the desired result.
Furthermore, the material selection for FSW equipment components, particularly those in direct contact with the workpiece, can significantly impact heat generation. Materials with lower thermal conductivity can help concentrate heat in the weld zone, potentially improving weld quality in certain applications.
Thermal management strategies for FSW tools
Effective thermal management is essential for maintaining tool integrity and ensuring consistent weld quality in FSW processes. As tools are subjected to extreme temperatures and mechanical stresses, implementing robust cooling strategies becomes paramount. Let's explore some of the innovative thermal management techniques employed in modern FSW equipment design.
Coolant circulation systems in FSW machines
Advanced FSW machines often incorporate sophisticated coolant circulation systems to regulate tool temperature. These systems typically use a combination of internal channels within the tool and external cooling jackets. A high-performance coolant, such as a water-glycol mixture or specialized cutting fluid, is circulated through these channels to efficiently remove heat from the tool.
The design of coolant flow paths is critical for optimal heat dissipation. Engineers use computational fluid dynamics (CFD) simulations to optimize coolant channel geometry, ensuring uniform cooling across the tool surface. Some cutting-edge systems even employ adaptive cooling, where coolant flow rates are adjusted in real-time based on temperature feedback from embedded sensors.
Heat sink designs for FSW tool holders
Tool holders in FSW equipment play a crucial role in managing heat transfer away from the welding zone. Modern heat sink designs for tool holders often feature expanded surface areas and optimized fin structures to maximize heat dissipation. Materials with high thermal conductivity, such as copper alloys or aluminum with diamond particle reinforcement, are frequently used to enhance heat transfer efficiency.
Some innovative heat sink designs incorporate phase change materials (PCMs) that absorb excess heat during peak temperature spikes. These PCMs melt and solidify within a specific temperature range, providing an additional buffer against thermal fluctuations and helping to maintain more stable tool temperatures throughout the welding process.
Thermal barrier coatings for FSW pins
To protect FSW pins from excessive heat and wear, thermal barrier coatings (TBCs) are increasingly being applied. These coatings, often ceramic-based, provide a layer of insulation that helps to reduce heat transfer to the tool core. Common TBC materials include yttria-stabilized zirconia (YSZ) and alumina, which offer excellent thermal resistance and wear properties.
The application of TBCs requires careful consideration of coating thickness and composition to balance thermal insulation with the tool's mechanical strength requirements. Advanced deposition techniques, such as plasma spraying or electron beam physical vapor deposition (EB-PVD), are used to create highly adherent and durable TBC layers on FSW pins.
Active cooling technologies in advanced FSW equipment
Cutting-edge FSW equipment is now incorporating active cooling technologies to provide more dynamic thermal management. These systems go beyond traditional passive cooling methods and offer real-time temperature control during the welding process. Some examples of active cooling technologies include:
- Thermoelectric cooling modules integrated into tool holders
- Compressed air cooling systems for rapid heat dissipation
- Liquid nitrogen cooling for extreme temperature applications
- Peltier effect devices for precise temperature regulation
These active cooling systems are often coupled with advanced temperature monitoring and control algorithms, allowing for adaptive thermal management based on real-time process conditions. This level of control helps to minimize thermal gradients within the tool, reducing thermal stress and extending tool life.
Material selection for FSW tools: heat resistance and wear
The choice of materials for FSW tools is critical in determining their performance under high-temperature and high-stress conditions. As FSW technology advances, researchers and engineers are continually exploring new materials and composites that can withstand the harsh welding environment while maintaining dimensional stability and wear resistance.
Tungsten-based alloys for High-Temperature FSW applications
Tungsten-based alloys have long been favored for FSW tools due to their exceptional high-temperature strength and wear resistance. Tungsten carbide (WC) and its variations, such as WC-Co composites, are particularly popular for their ability to maintain hardness at elevated temperatures. Recent developments in powder metallurgy techniques have led to the creation of ultra-fine-grained tungsten alloys with improved toughness and thermal shock resistance.
Researchers are also exploring novel tungsten alloy compositions that incorporate elements like rhenium or lanthanum oxide to enhance high-temperature stability and creep resistance. These advanced alloys show promise for extending tool life in extreme FSW applications, such as welding high-strength steels or titanium alloys.
Nickel-chromium superalloys in FSW tool design
Nickel-chromium superalloys, such as Inconel and Hastelloy, are gaining traction in FSW tool design, especially for applications involving corrosive environments or where tool reactivity with the workpiece is a concern. These alloys offer excellent oxidation resistance and maintain their strength at high temperatures, making them suitable for welding a wide range of materials.
Recent advancements in nickel-based superalloys include the development of single-crystal variants, which exhibit superior creep resistance and thermal stability compared to their polycrystalline counterparts. While more expensive to produce, these single-crystal superalloys are finding use in high-performance FSW tools where extended tool life justifies the higher cost.
Ceramic composites for extreme wear resistance in FSW
Ceramic composites are at the forefront of materials research for FSW tools, offering unparalleled wear resistance and thermal stability. Silicon nitride (Si3N4) and silicon carbide (SiC) based composites have shown promising results in FSW applications, particularly for welding abrasive materials like metal matrix composites.
One innovative approach in ceramic composite development is the creation of functionally graded materials (FGMs). These materials feature a gradual change in composition from a tough, fracture-resistant core to a hard, wear-resistant surface. This gradient structure helps to mitigate the inherent brittleness of ceramics while maintaining excellent wear properties at the tool-workpiece interface.
Polycrystalline cubic boron nitride (PCBN) tools for FSW
Polycrystalline cubic boron nitride (PCBN) has emerged as a superior material for FSW tools, particularly in applications involving high-strength alloys or materials with high melting points. PCBN offers exceptional hardness, second only to diamond, and maintains its properties at extreme temperatures.
Recent developments in PCBN tool technology include the use of nano-structured PCBN composites, which exhibit improved toughness and thermal conductivity compared to conventional PCBN. These nano-structured materials are created through advanced sintering processes that control grain size and distribution at the nanometer scale.
Geometry optimization of FSW tools for heat dissipation
The geometry of FSW tools plays a crucial role in heat generation, material flow, and overall weld quality. Optimizing tool geometry for effective heat dissipation is a key focus area in FSW equipment design. Advanced computer-aided design (CAD) and finite element analysis (FEA) tools are now being used to create complex tool geometries that balance heat generation with efficient dissipation.
One of the most significant advancements in tool geometry optimization is the development of variable pitch and variable taper pins. These designs allow for a more gradual transition of material flow and heat distribution along the pin length. By varying the pitch or taper, engineers can create tools that generate less heat at the pin tip, reducing the risk of overheating and tool wear in this critical area.
Another innovative approach is the use of helical features on tool shoulders. These features, which can include scrolls or grooves, help to direct material flow and improve heat distribution across the weld surface. Some advanced designs incorporate asymmetric shoulder patterns that create a pulsating effect during rotation, enhancing material mixing and heat dissipation.
The incorporation of internal cooling channels within FSW tools has also seen significant advancements. Modern tool designs often feature complex networks of cooling passages that allow for targeted temperature control in specific areas of the tool. These channels can be optimized using topology optimization algorithms to maximize cooling efficiency while maintaining the tool's structural integrity.
Furthermore, the use of modular tool designs is gaining popularity in FSW equipment. These designs allow for quick interchange of different pin and shoulder configurations, enabling operators to optimize tool geometry for specific materials or welding conditions. Some advanced systems even feature in-situ adjustable tools that can modify their geometry during the welding process to adapt to changing thermal conditions.
Impact of rotational and traverse speeds on tool temperature
The relationship between rotational speed, traverse speed, and tool temperature is a critical aspect of FSW process optimization. These parameters directly influence the amount of heat generated during welding and, consequently, the thermal load on the tool. Understanding and controlling this relationship is essential for achieving high-quality welds while minimizing tool wear.
Rotational speed primarily affects the rate of heat generation through friction and plastic deformation. Higher rotational speeds generally lead to increased heat generation, which can be beneficial for welding materials with high melting points. However, excessive rotational speeds can result in overheating, leading to tool degradation and potential weld defects.
Traverse speed, on the other hand, influences the heat input per unit length of the weld. Slower traverse speeds allow for more heat accumulation in the weld zone, which can be necessary for thicker materials or those with high thermal conductivity. Conversely, faster traverse speeds reduce the overall heat input, which can be advantageous for materials prone to thermal distortion.
The optimal balance between rotational and traverse speeds varies depending on the material being welded, tool design, and desired weld properties. Advanced FSW equipment now incorporates adaptive control systems that can adjust these parameters in real-time based on feedback from temperature sensors and force monitoring devices. These systems help maintain consistent weld quality and tool temperature across varying material thicknesses and compositions.
Finding the right balance of rotational and traverse speeds in FSW is like tuning a high-performance engine – too much power can lead to burnout, while too little may not get you to the finish line.
Recent research has also explored the use of non-constant rotational and traverse speeds during the FSW process. Techniques such as pulsed rotation or variable traverse speed have shown promise in improving weld quality and reducing tool wear in certain applications. These advanced process control strategies are made possible by the integration of high-precision servo motors and sophisticated control algorithms in modern FSW equipment.
Advanced monitoring systems for FSW tool wear and heat
As FSW technology continues to evolve, the integration of advanced monitoring systems has become crucial for optimizing process parameters and predicting tool wear. These systems provide real-time data on tool condition, temperature distribution, and weld quality, enabling operators to make informed decisions and proactively address potential issues.
Infrared thermography in real-time FSW process control
Infrared thermography has emerged as a powerful tool for monitoring temperature distribution during the FSW process. High-speed thermal cameras can capture detailed thermal profiles of the tool and workpiece in real-time, providing valuable insights into heat generation and dissipation patterns. This technology allows for the detection of localized hotspots or uneven heating, which can be indicative of tool wear or process instabilities.
Advanced FSW equipment now incorporates integrated thermal imaging systems that feed data directly into process control algorithms. These systems can automatically adjust welding parameters based on the observed thermal patterns, ensuring consistent heat input and minimizing the risk of overheating. Some cutting-edge setups even use multi-spectral imaging to provide a more comprehensive view of the thermal and material flow dynamics during welding.
Acoustic emission sensors for tool wear detection
Acoustic emission (AE) sensing technology is being increasingly employed in FSW equipment to monitor tool condition and detect early signs of wear. AE sensors can detect high-frequency elastic waves generated by various mechanisms during the welding process, including plastic deformation, crack propagation, and friction between the tool and workpiece.
By analyzing the acoustic emission signals using advanced signal processing techniques, it's possible to identify characteristic patterns associated with different types of tool wear. Machine learning algorithms are often employed to classify these signals and provide real-time feedback on tool condition. This allows for predictive maintenance scheduling and helps prevent catastrophic tool failures during operation.
Machine learning algorithms for FSW tool life prediction
The application of machine learning (ML) and artificial intelligence (AI) in FSW process monitoring has opened up new possibilities for tool life prediction and process optimization. By analyzing vast amounts of historical data on tool wear patterns, process parameters, and weld quality metrics, ML algorithms can develop sophisticated models for predicting tool life under various operating conditions.
Integration of digital twins in FSW equipment design
The concept of digital twins has gained significant traction in FSW equipment design and process optimization. A digital twin is a virtual representation of the physical FSW system that can simulate the welding process in real-time, incorporating data from various sensors and historical performance records.
